Performance Evaluation of Trino 468, Spark 4.0.0-RC2, and Hive 4 on MR3 2.0 using the TPC-DS Benchmark

In this article, we report the results of evaluating the performance of the following systems using the 10TB TPC-DS Benchmark.

1. Trino 468 (released in December 2024)
2. Spark 4.0.0-RC2 (released in March 2025)
3. Hive 4.0.0 on Tez (built in February 2025)
4. Hive 4.0.0 on MR3 2.0 (released in April 2025)

Trino is an MPP-style query engine and is not fault-tolerant. The other three systems are fully fault-tolerant.

Introduction

Trino is a powerful distributed SQL engine known for its ability to query everything from object stores to relational databases. Its design emphasizes low-latency response times, making it well-suited for interactive analytics at scale. On its official website, Trino proudly claims to run at ludicrous speed — a phrase that captures both its technical ambition and its playful confidence.

Apache Spark is a widely used distributed computing engine designed for large-scale data processing. Spark is built for speed and ease of use, supporting diverse workloads within a unified framework and proving itself battle-tested across industries. Its versatility has earned it a fitting reputation: Spark is the Swiss Army knife of the data world.

Apache Hive can be compared to the tortoise of the data race — not the fastest query engine, but one that consistently completes workloads with reliability. It is known for its ability to handle massive datasets with strong fault tolerance, making it a dependable choice for large-scale ETL. The recent release of Hive 4 reflects its ongoing evolution, bringing notable improvements in performance and features.

With these systems in mind, we set out to compare their performance using the industry-standard TPC-DS benchmark. Alongside the more familiar systems, we also include Hive on MR3 — a variant of Apache Hive that replaces Tez with MR3 as the execution engine. Designed to support both batch and interactive processing within a unified framework, Hive on MR3 is a relatively new alternative that is worth evaluating in a comparative setting.

The outcome may not align with common expectations. Some results, in fact, may come as a surprise. Let the race begin!

Experiment Setup

Cluster

For the experiment, we use a cluster consisting of 1 master and 12 worker nodes with the following properties:

• 2 x Intel(R) Xeon(R) E5-2640 v4 @ 2.40GHz
• 256GB of memory
• 1 x 300GB HDD, 6 x 1TB SSDs
• 10 Gigabit network connection

In total, the amount of memory of worker nodes is 12 * 256GB = 3072GB. The cluster runs Hadoop 3.1 and uses an HDFS replication factor of 3.

TPC-DS benchmark

We use 99 queries from the original TPC-DS benchmark (generated with seed 1819994127). Each system uses queries adjusted for its SQL syntax, including differences in interval expressions and identifier quoting. Additionally we apply the following changes.

• Trino only. For query 21, we use a double division instead of an integer division.

    where (case when inv_before > 0
-               then inv_after / inv_before
+               then cast(inv_after as double) / inv_before
                else null
                end) between 2.0/3.0 and 3.0/2.0

• For query 72, we replace arithmetic on date values with a call to date_add() to comply with SQL rules for date manipulation.

 where d1.d_week_seq = d2.d_week_seq
   and inv_quantity_on_hand < cs_quantity
-  and d3.d_date > d1.d_date + 5
+  and d3.d_date > date_add(d1.d_date, 5)
   and hd_buy_potential = '1001-5000'
   and d1.d_year = 2001

• Spark only. For queries 94 and 95, we rewrite the date range condition to use explicit date conversion because Spark 4.0.0 does not interpret 1999-5-01 as 1999-05-01.

-     d_date between '1999-5-01' and
-            (cast('1999-5-01' as date) + interval '60' days)
+     d_date between cast('1999-5-01' as date) and
+            date_add(cast('1999-5-01' as date), 60)

The scale factor for the TPC-DS benchmark is 10TB.

We generate datasets in ORC format with Snappy compression.

info

Spark is known to perform better on Parquet datasets. Our internal experiments, however, show that the difference is not significant, and using Parquet for Spark is unlikely to change the overall conclusions of this article.

Configuration

We use the following Java versions.

1. Java 23 for Trino 468 (required by Trino)
2. Java 21 for Spark 4.0.0-RC2
3. Java 8 for Hive 4.0.0 on Tez (required by Hive on Tez)
4. Java 22 for Hive 4.0.0 on MR3 2.0

For Trino, we use a JVM option -Xmx196G and choose the following configuration after performance tuning:

memory.heap-headroom-per-node=58GB
query.max-total-memory=1680GB
query.max-memory-per-node=120GB
query.max-memory=1440GB
sink.max-buffer-size=256MB
node-scheduler.policy=uniform
optimizer.optimize-metadata-queries=true

For Spark, we set spark.executor.memory=196g and spark.executor.memoryOverhead=20g to configure the basic memory allocation for Spark executors. Among the configuration keys we tune for performance, the following three are worth highlighting:

spark.sql.adaptive.enabled=true
spark.sql.autoBroadcastJoinThreshold=500000000
spark.sql.join.preferSortMergeJoin=true

In particular, we observe that increasing spark.sql.autoBroadcastJoinThreshold (from its default value of 10MB) generally reduces query execution time, but setting it beyond 500000000 (about 500MB) causes some TPC-DS queries to fail.

The configuration for Hive on Tez and Hive on MR3 is based on the the default configuration in the MR3 release. For Hive on Tez, we assign 8GB of memory to each YARN container. For Hive on MR3, we use a JVM option -Xmx86G for every worker and create two workers on each node.

Tests

Sequential tests

In a sequential test, we submit 99 queries from the TPC-DS benchmark. We report the total execution time, the geometric mean of execution times, and the execution time of each individual query.

Concurrent tests

In a concurrent test, we use a concurrency level of 10, 20, or 40 and start the same number of clients, each submitting queries 30 to 49 from the TPC-DS benchmark. None of these 20 queries are long-running, and they can be considered interactive queries. To better simulate realistic environments, each client submits the 20 queries in a unique sequence.

For each run, we measure the longest execution time among all clients. Since the cluster remains busy until the last client finishes executing its queries, this longest execution time can be viewed as the cost of executing queries for all clients. For the last client, we also report the execution time of each individual query to evaluate fairness in resource allocation.

We exclude Hive on Tez from concurrent tests because each query runs in isolation using separate YARN containers, resulting in no meaningful interaction between concurrent queries. Increasing the concurrency level simply increases total execution time proportionally (or worse because of scheduling overhead).

Raw data of the experiment results

For the reader's perusal, we attach the table containing the raw data of the experiment results. Here is a link to [Google Docs].

Analysis of sequential tests

Query completion

Every system completes all queries successfully.

Correctness

The three systems agree on the results with the following exception:

• For both subqueries of query 23, Trino returns no rows, whereas Spark and Hive on Tez/MR3 return a single row with identical contents.

As all the systems under comparison have been developed independently, we can conclude (with high confidence) that Trino returns wrong results for query 23. We believe that this correctness bug was introduced after PrestoSQL was rebranded as Trino, as Presto 317 returns correct results for query 23.

It is important to distinguish between failing to complete a query and returning incorrect results. While execution failures are visible and often recoverable, returning wrong results is a silent correctness issue that can lead to incorrect decisions and undetected data quality issues. Trino completes query 23 without error, but the results are incorrect. This is more serious than query failures.

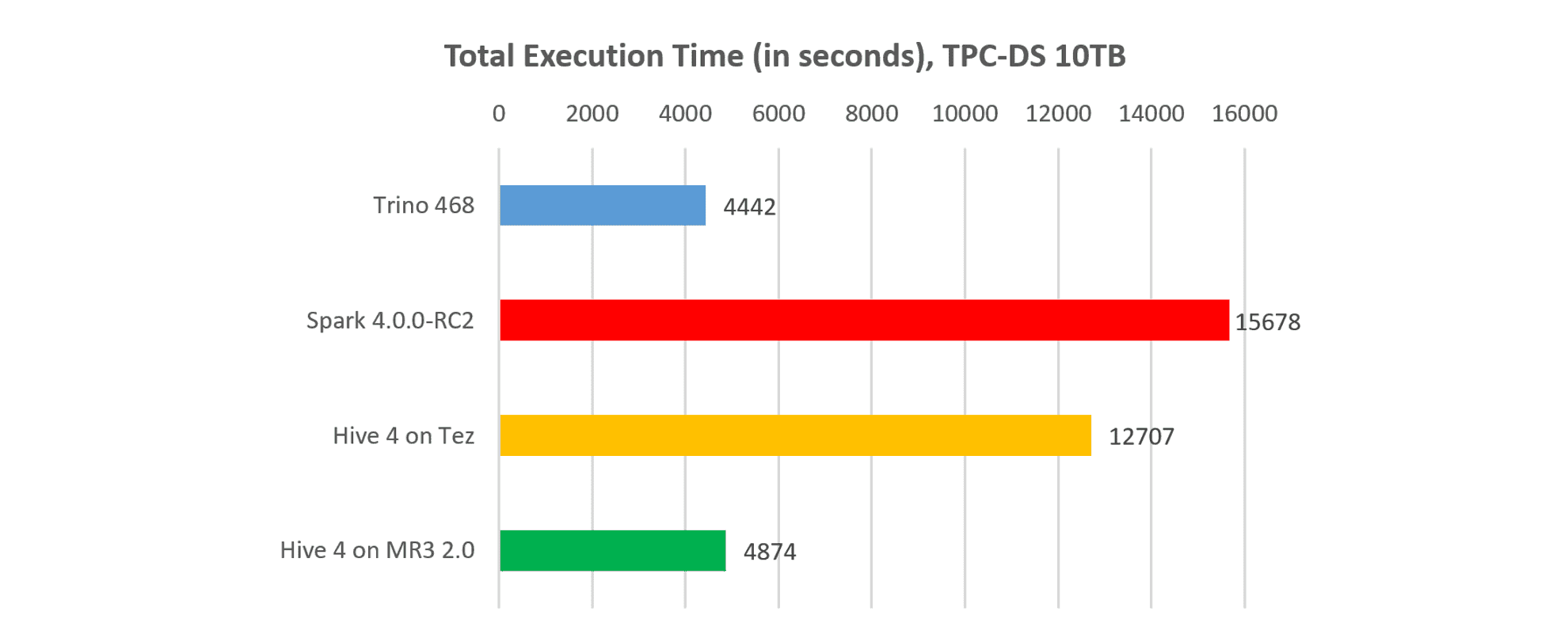

Total execution time

In terms of total execution time, Trino is the fastest.

• Trino completes all queries in 4,442 seconds.
• Spark completes all queries in 15,678 seconds.
• Hive on Tez completes all queries in 12,707 seconds.
• Hive on MR3 completes all queries in 4,874 seconds.

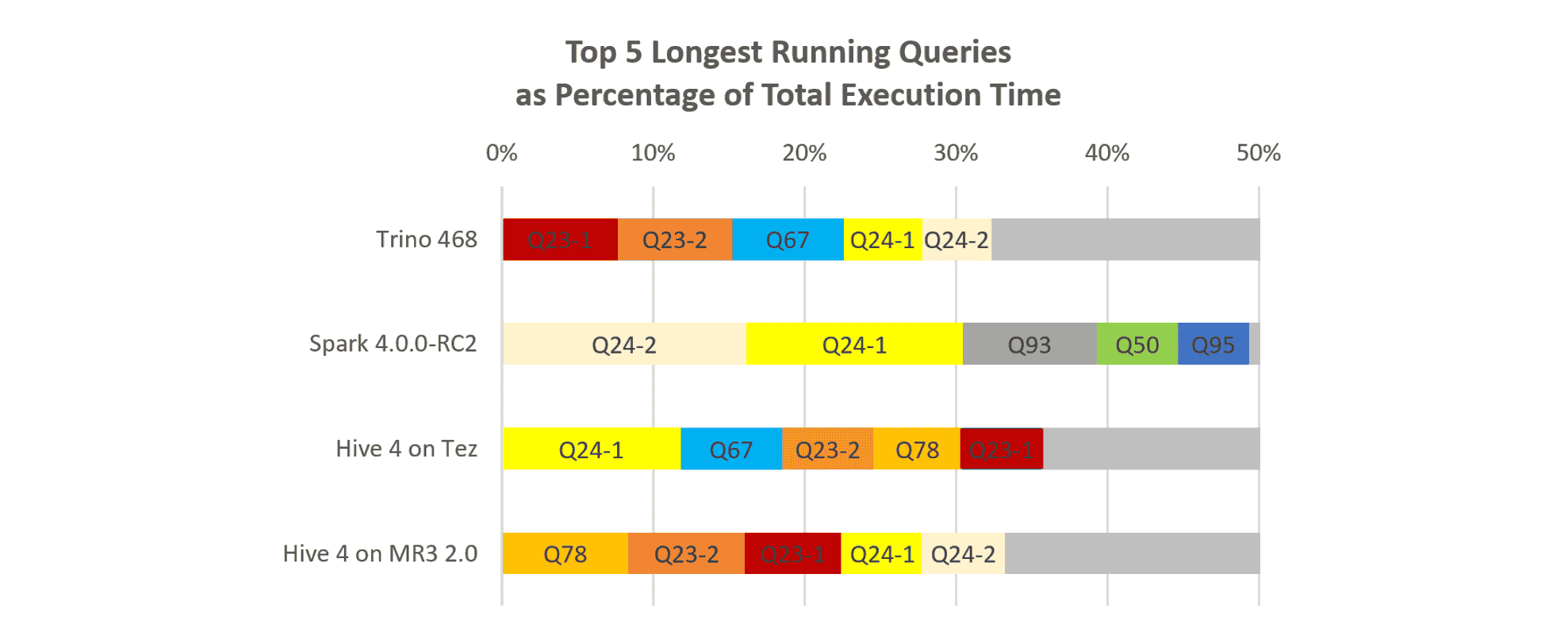

Perhaps surprisingly, Spark shows a longer total execution time than Hive on Tez. This does not, however, necessarily mean that it is the slowest system overall. The top two longest-running queries for Spark, queries 24-1 and 24-2, account for about 30% of the total execution time, whereas the top two queries for Hive on Tez make up only about 18%. This indicates that the total execution time for Spark is more heavily skewed by a small number of outlier queries. As we will see in the response time analysis later, Spark responds much faster than Hive on Tez for most queries.

Hive on MR3 significantly outperforms Hive on Tez, demonstrating the impact of the MR3 execution engine when paired with the same Hive front-end. In terms of total execution time, Hive on MR3 is only 9.7% slower than Trino, making it remarkably close. This result highlights Hive on MR3 as a strong contender for both compatibility and performance. Trino may run at ludicrous speed, but Hive on MR3 is right behind — with fault tolerance and full Hive compatibility.

info

We experimented with enabling fault tolerance in Trino, which involves writing intermediate data to HDFS. Interestingly, for quite a few queries, Trino with fault tolerance actually ran faster than without it. (Similar results have been reported elsewhere.) However, when running large queries such as query 67 or query 78, the Trino coordinator crashed, bringing down the entire system. After encountering repeated crashes, we decided not to pursue fault-tolerant mode further.

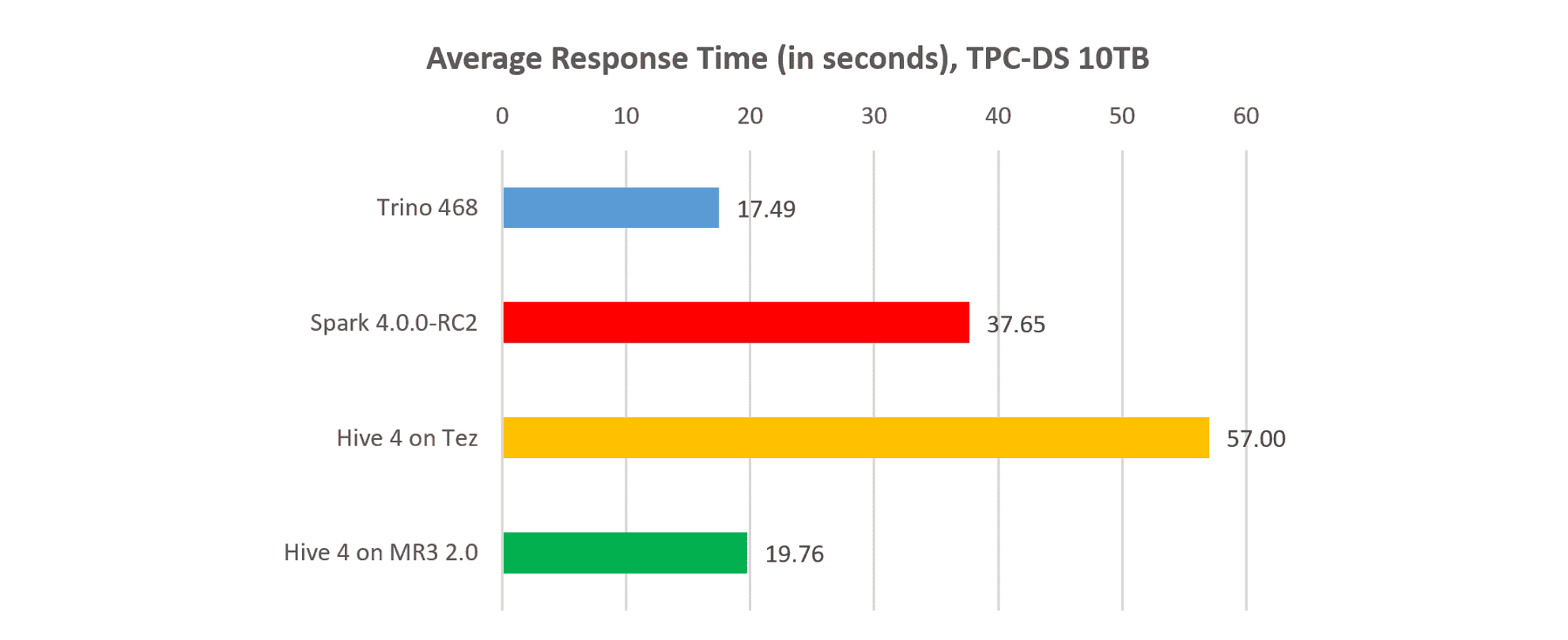

Average response time

For average response time, we use the geometric mean of execution times, as it takes into account outlier queries that run unusually short or long.

In terms of average response time, Trino remains the fastest.

• Trino completes each query in 17.49 seconds on average.
• Spark completes each query in 37.65 seconds on average.
• Hive on Tez completes each query in 57.00 seconds on average.
• Hive on MR3 completes each query in 19.76 seconds on average.

We observe that Trino retains its lead, but Hive on MR3 is again very close as it is only about 13% slower. For Spark, it performs better than its total execution time suggests, with an average response time significantly lower than Hive on Tez. This result supports the view that the total execution time is partially skewed by a small number of outlier queries. Hive on Tez is the slowest system, primarily because it launches new YARN containers for each query, thus incurring substantial overhead. The lack of worker reuse across queries also reduces the opportunity for JIT optimization, particularly for short-running queries.

Analysis of concurrent tests

Query completion

Every system successfully completes all queries at concurrency levels of 10, 20, or 40.

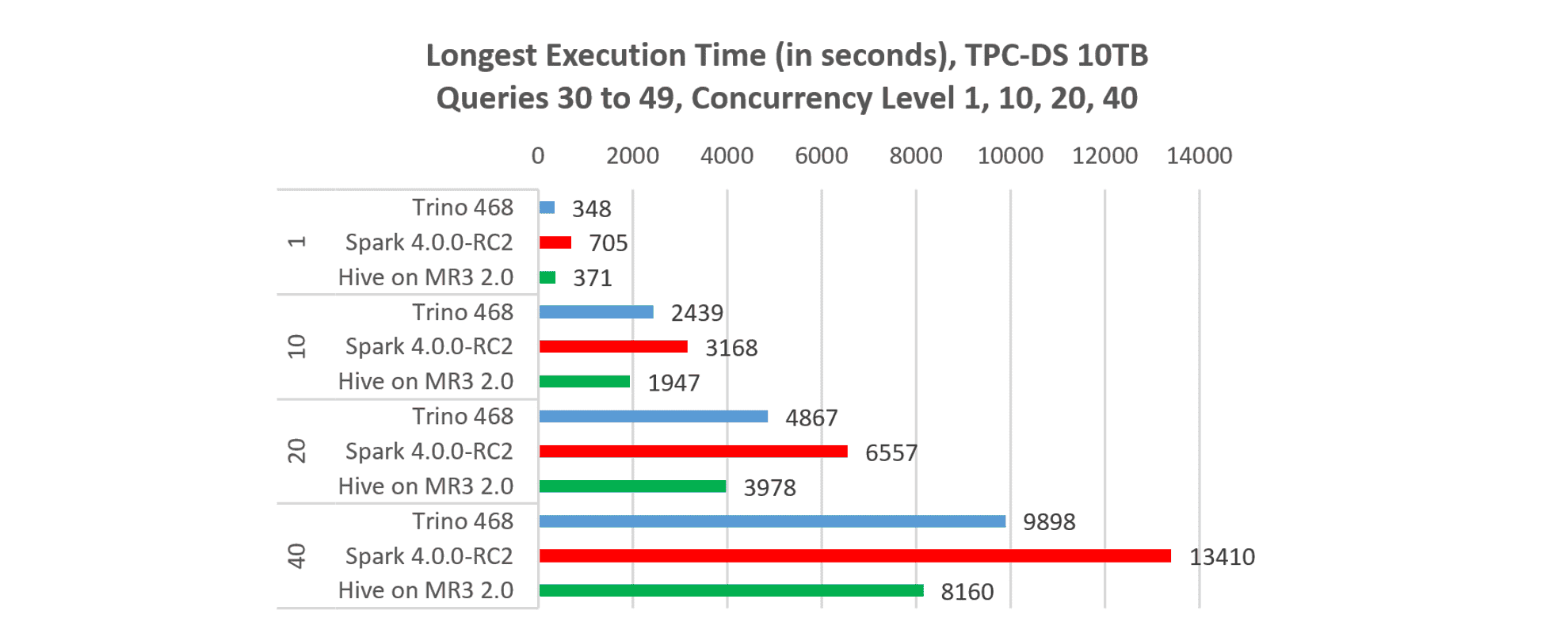

Longest execution time

In terms of longest execution time, Hive on MR3 is the fastest. For concurrency levels of 10, 20, and 40:

• Trino completes all queries in 2,439, 4,867, and 9,898 seconds, respectively.
• Spark completes all queries in 3,168, 6,557, and 13,410 seconds, respectively.
• Hive on MR3 completes all queries in 1,947, 3,978, and 8,160 seconds, respectively.

The results for a concurrency level of 1 are obtained from the previous sequential tests.

We observe that Hive on MR3 consistently leads at all concurrency levels. For example, at a concurrency level of 40, Hive on MR3 is 21.3% faster than Trino and 64.3% faster than Spark. Although Hive on MR3 is not the fastest in sequential runs, it delivers the best performance under concurrent workloads, which more closely reflect typical production environments.

Concurrency factor

To quantify the overall efficiency in managing concurrent workloads, we define a new metric called concurrency factor, which can be thought of as a normalized per-query execution time.

• concurrency factor = longest execution time in a concurrent test ÷ (concurrency level * total execution time in an equivalent sequential test)

Thus a concurrency factor indicates ''how long it takes to complete a single query in a concurrent test, relative to the time required to complete the same query in a sequential test.''

Here are a few examples:

• A concurrency factor of 0.4 means that a query taking 100 seconds in a sequential test takes 40 seconds on average in a concurrent test.
• For a system that performs no optimization for concurrecy and simply executes all incoming queries serially, we obtain a concurrency factor of 1. (Hive on Tez has a concurrency factor close to 1 because no resources are shared across queries.)
• For a system that caches query results and skips execution for duplicate queries, the concurrency factor may approach the ideal value of '1 / concurrency level'.
• For a system that incurs excessive overhead in executing concurrent queries, the concurrency factor may exceed 1.

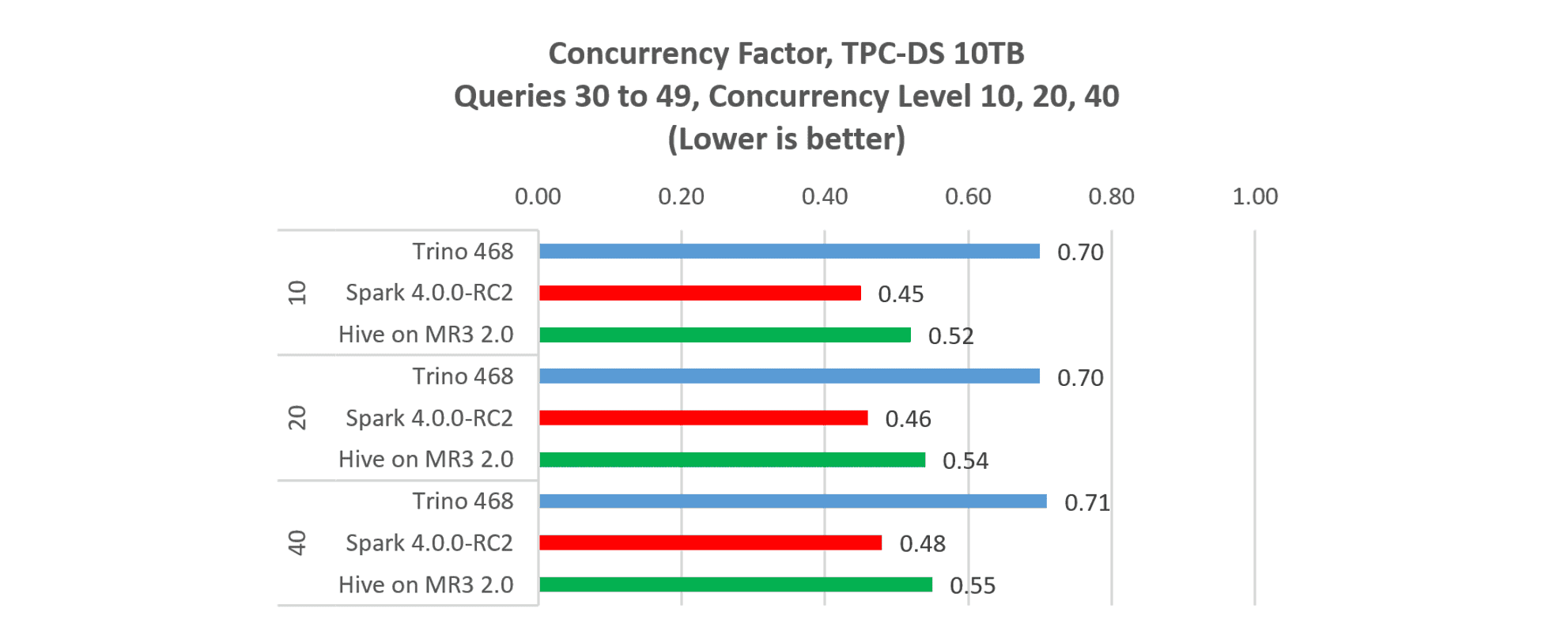

The following graph shows concurrency factors obtained from the concurrent tests.

We observe that with concurrency factors of 0.45 to 0.48, Spark is the most efficient in managing concurrent workloads based on normalized per-query execution time. Spark, however, remains the slowest system overall, as its sequential execution time is significantly longer: 705 seconds compared with 348 seconds of Trino and 371 seconds of Hive on MR3.

From the analysis of concurrency factors, we draw the following conclusions:

• In comparison with Trino, Hive on MR3 runs faster because of its higher efficiency in handling concurrent workloads.
• In comparison with Spark, Hive on MR3 runs faster because of its higher efficiency in executing individual queries.

Standard deviation of query execution times

To evaluate fairness and consistency in resource allocation under concurrency, we measure the standard deviation of query execution times from the longest-running client. A low standard deviation suggests that queries are being processed at a consistent rate, with no major delays or bottlenecks. In contrast, a high standard deviation indicates that some queries may be significantly slower, possibly due to uneven resource allocation.

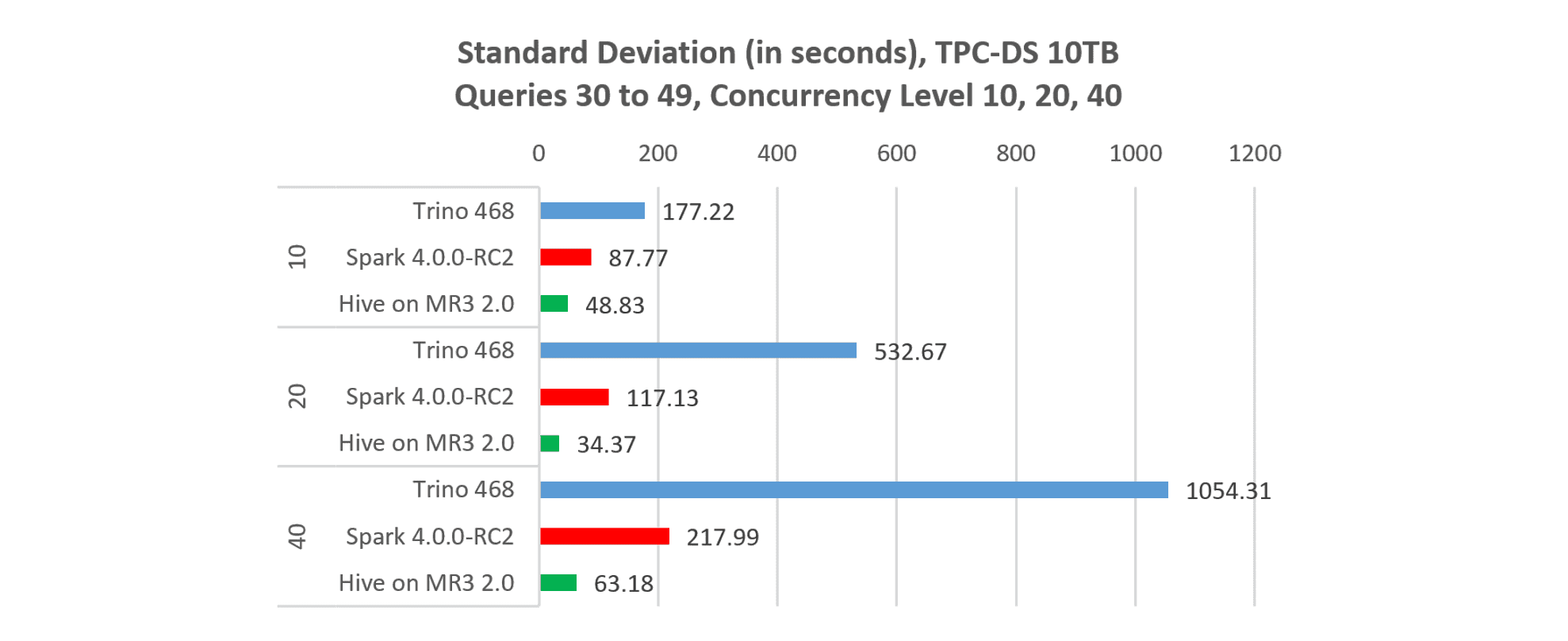

The following graph shows standard deviations from the concurrent tests.

We observe significant differences in how consistently each system executes queries under concurrent workloads. Hive on MR3 shows the lowest standard deviation across all concurrency levels, indicating that it delivers the most balanced query execution. In contrast, Trino shows the highest standard deviation, which increases sharply with concurrency. At a concurrency level of 40, for example, three queries take more than 1,000 seconds to complete.

Summary of the analysis

This performance evaluation of Trino, Spark, and Hive on Tez/MR3 using the 10TB TPC-DS benchmark reveals several key findings.

• Correctness. All systems complete every query, but Trino returns incorrect results for both subqueries of query 23, an error more serious than query failures.
• Total Execution Time (Sequential). Trino is the fastest, followed closely by Hive on MR3, which significantly outperforms Hive on Tez. Spark is the slowest, skewed by a few outlier queries.
• Average Response Time (Sequential). Trino maintains the lead in average response time, with Hive on MR3 again closely behind.
• Longest Execution Time (Concurrent). Under concurrent workloads (10, 20, and 40 clients), Hive on MR3 consistently outperforms both Trino and Spark.
• Concurrency Efficiency. Spark demonstrates the highest efficiency in managing concurrent workloads. It remains the slowest overall, however, because of long sequential query execution times.
• Fairness and Consistency. Hive on MR3 is the most consistent in query execution times under concurrency, as indicated by its lowest standard deviation.

Conclusions

As the race comes to a close, here is our final verdict:

• Trino runs at ludicrous speed, but sometimes stumbles on accuracy and wobbles on concurrency.
• Apache Spark is still the Swiss Army knife, though sometimes slower on individual queries.
• Apache Hive remains the tortoise of the data race — slow but reliable.
• Hive on MR3 is a surprisingly swift tortoise new to the race.

Hive on MR3 is a system designed to support interactive and batch workloads in a single fault-tolerant system. With built-in capacity scheduling, it allows interactive queries to take priority without delaying batch jobs. This unified design simplifies operations, reduces infrastructure costs, and eliminates the need to maintain multiple platforms.

Hive on MR3 runs on Hadoop, on Kubernetes, and in standalone mode. See the quick start guides to try Hive on MR3.
